Heavy-Duty PP Woven Lifting Loops & Belts for FIBC Bulk Bag

Heavy-Duty PP Woven Lifting Loops & Belts for FIBC Bulk Bag

Product Description

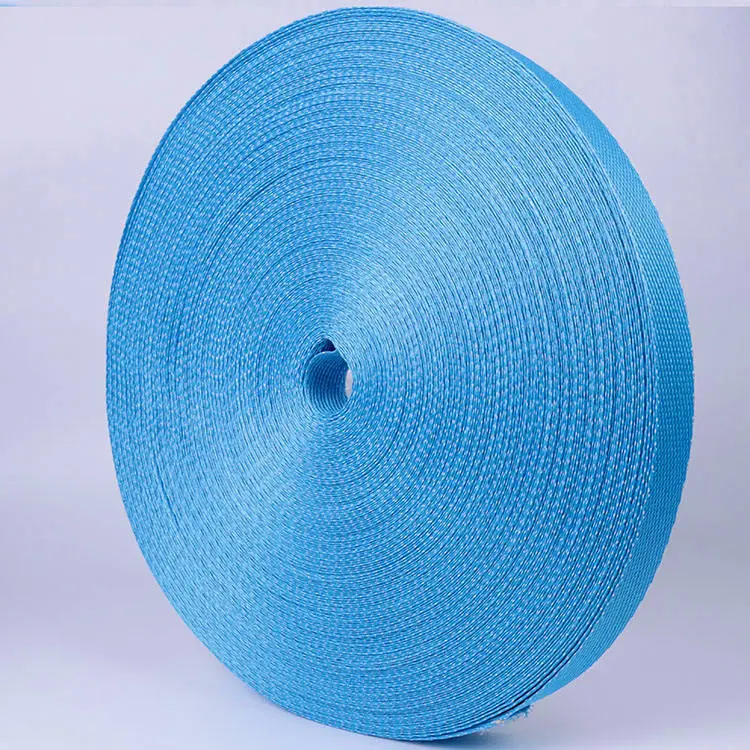

Our high-tenacity polypropylene (PP) woven lifting loops/belts are precision-engineered core components for 1–3 ton FIBC (Flexible Intermediate Bulk Container) bags, jumbo sacks, and industrial packaging. As a direct alternative to standard polyester lifting straps, these PP webbing belts deliver exceptional cost-performance ratio while meeting international safety standards (5:1 or 6:1 safety factor) for mining, construction, agriculture, and logistics. Manufactured from 100% virgin PP yarn with a reinforced twill weave, this series ensures maximum load distribution, tear resistance, and durability during crane/forklift handling, ensuring safe and efficient transport of bulk materials worldwide.

Inquire Online

CONTACT US

 +86 15030063088
 532393225@qq.com

Technical Specifications

Parameter	Standard Specification	Customizable Range
Material	100% Virgin Polypropylene (PP) Filament	UV-Stabilized, Anti-Static Grades
Width	40mm / 50mm / 70mm (Most Popular)	10mm – 150mm
Weight per Meter	40g/m – 70g/m	5g/m – 70g/m
Safety Factor	5:1 (Standard) / 6:1 (Heavy-Duty)	8:1 for Hazardous Material Applications
Color	Sky Blue, White, Black, Natural	Custom Pantone Colors
Packaging	150m per Roll (Standard)	100m/200m/500m Rolls or Cut Strips
Temperature Range	-40°C to 90°C	N/A
Certifications	ISO 9001, SGS, RoHS	FDA (Food Contact), UN (Hazardous Goods)

Technical Advantages

Core Advantages & Key Features

1. Uncompromising Tensile Strength for Heavy Loads

Crafted from 100% virgin high-tenacity PP filament, our lifting belts support full bag loads (1000kg–3000kg) without deformation or snapage. The dense woven structure distributes weight evenly across lifting points, preventing stress concentration and ensuring stable lifting for forklifts, cranes, and hoists.

Key Spec: Supports up to 3 tons per loop; available in weights from 40g/m to 70g/m for varying load demands.

2. Superior Durability & Abrasion Resistance

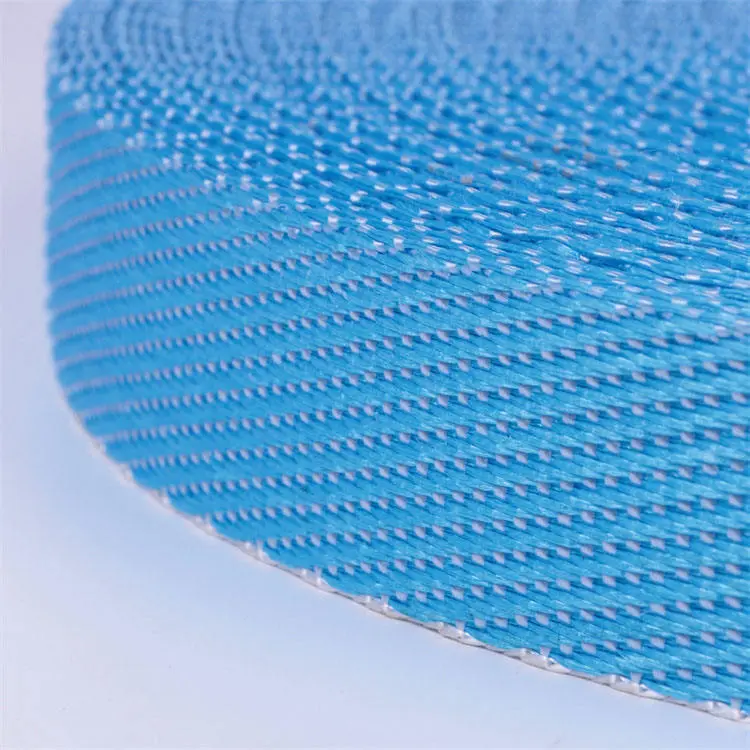

Engineered for rough industrial environments, the tight twill weave provides exceptional resistance to friction, punctures, and tearing. Ideal for bags handling abrasive materials (sand, gravel, ore, cement) or outdoor storage exposed to rough handling.

Advantage: Outlasts standard PP webbing by 30% under repeated mechanical stress, reducing premature bag failure.

3. Moisture & Chemical Resistance (Inherent to PP)

Unlike cotton or low-grade polyester, PP is naturally hydrophobic. This webbing will not absorb water, mildew, or weaken when exposed to humidity, fertilizers, pesticides, or harsh industrial chemicals. It is the ideal choice for outdoor storage and marine/transport environments.

4. UV Stabilized for Long-Term Outdoor Use

Customizable with UV stabilization treatment (0.5%–2% UV inhibitor additive), the webbing withstands prolonged sunlight exposure without brittling or color fading. Perfect for construction sites, agricultural storage, and flood control projects requiring extended outdoor durability.

5. High Stability & Low Stretch

Maintains structural integrity under dynamic load with minimal elongation (≤5%). This critical feature prevents load shifting during transport, ensuring the bulk bag remains upright and secure, reducing the risk of cargo spillage or damage.

6. Seamless Production Compatibility

Precision-calibrated for uniform thickness and tension, our PP lifting loops run flawlessly on all industrial FIBC sewing machines. It minimizes thread breakage, jamming, and downtime during the bag manufacturing process, boosting production efficiency by up to 20%.

7. Full Customization for Global Standards

We tailor solutions to match international market requirements:

Width: 20mm – 100mm (customizable to 150mm for heavy-duty U-Panel FIBCs)

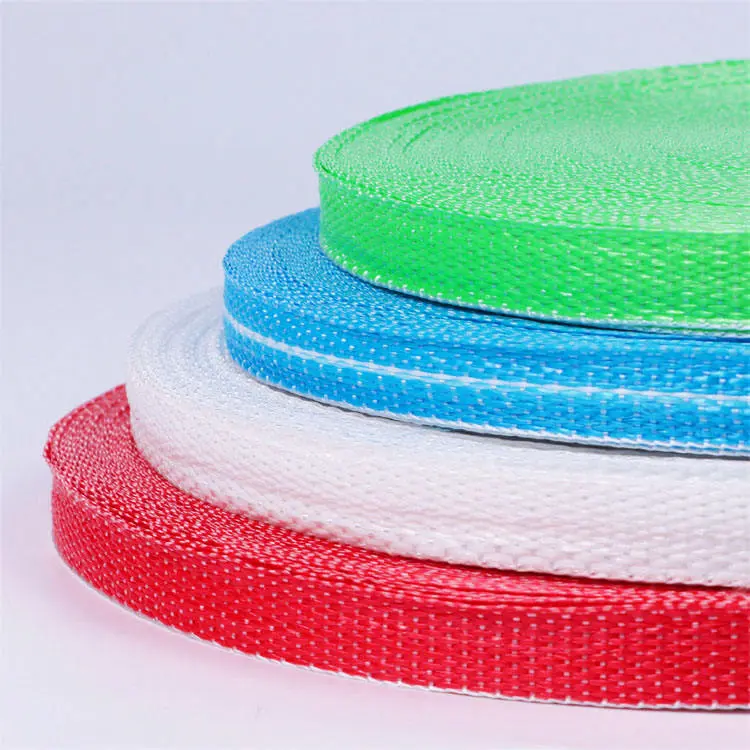

Color: Sky blue (standard), white, black, green, red, or custom Pantone matching
Packaging: 100m/150m/200m per roll (standard) or cut-to-length straps
Certifications: ISO 9001, SGS, and RoHS compliant (FDA food-grade option available)

Primary Industrial Applications

This heavy-duty PP webbing is the industry standard for reinforcing critical lifting components in bulk packaging:

FIBC Bulk Bag Manufacturing
- Standard Corner Lifting Loops (4-point lifting)
- Cross-Corner Lifting Loops (for upright positioning)
- Stevedore Straps (connecting loops for single-point crane lifting)
Heavy-Duty Woven Sacks
- Cement bags, mining material sacks, and construction aggregate packaging
Agricultural Logistics
- Potato/onion mesh bag seams and cargo securing straps
Construction & Mining
- Slings for building materials, levee reinforcement, and site cargo bundling.

Why Choose Our PP Lifting Belts Over Competitors?

Feature	Our PP Lifting Loops	Standard PP Webbing	Polyester Lifting Straps
Load Capacity	★★★★★ (Certified for 1–3 Ton FIBCs)	★★★☆☆ (Limited to Light Loads)	★★★★★ (Equal Strength, Higher Cost)
Cost Efficiency	30% Cheaper than polyester, high yield	Budget-friendly, but inconsistent quality	Premium pricing (2x cost of PP)
UV Resistance	★★★★★ (Custom 3000+ hours UV)	★★☆☆☆ (Fades Quickly Outdoors)	★★★★☆ (Good UV Protection)
Moisture Proof	100% Waterproof (No mildew risk)	Some absorbency	Absorbs water, prone to rot
Sewing Speed	Low friction, jam-free on industrial machines	Frequent breakage & snags	Smooth operation, higher friction
